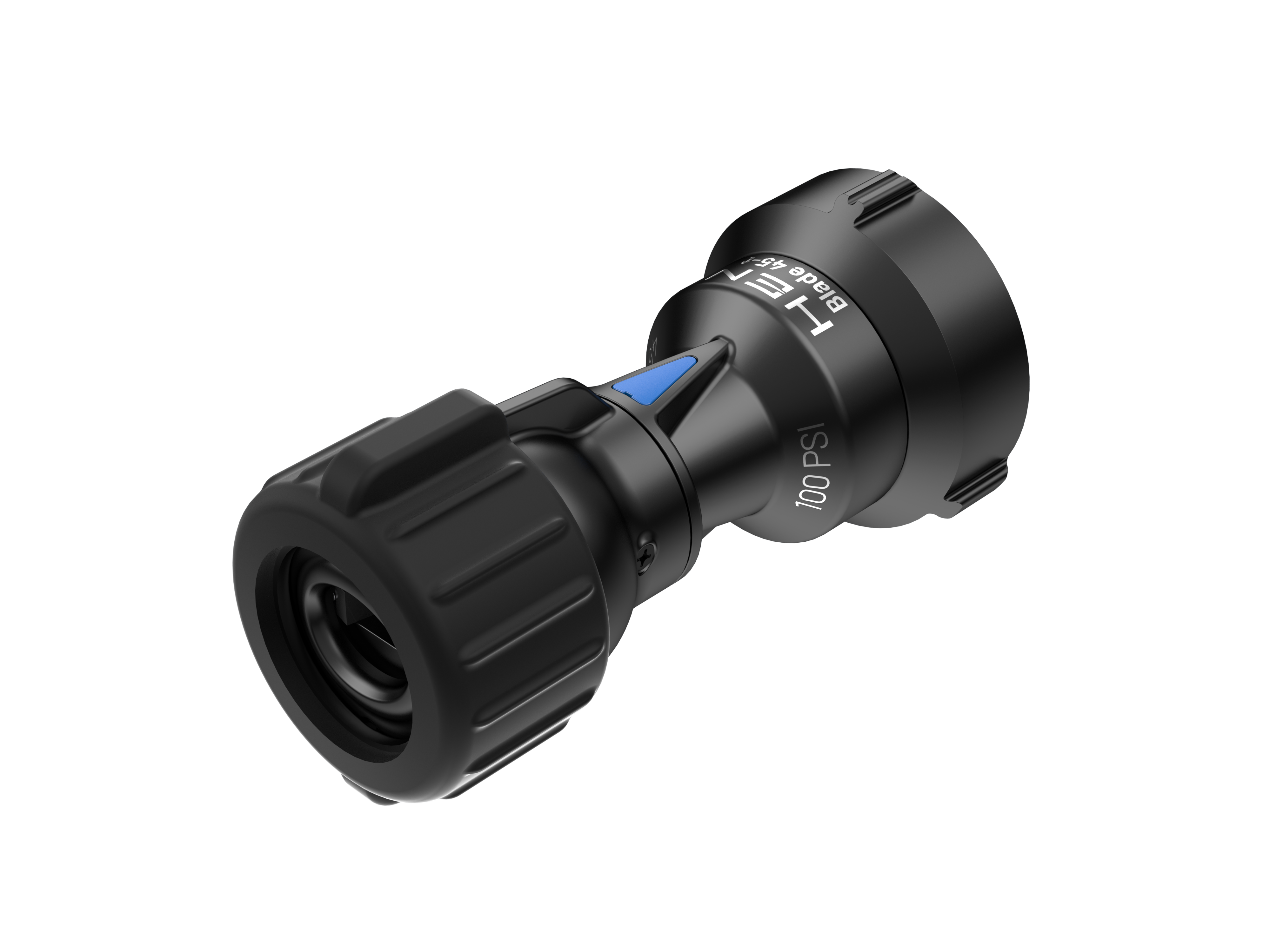

The HEN Blade 45-t Nozzle is a blade nozzle rated at 45 GPM, built for wildland lines and booster reels.
The HEN® BLADE™ combination smoothbore nozzle redefines fire attack by combining the reach and penetration of a traditional smoothbore with the versatility of an in-line BLADE™ pattern.
Features
- Quarter-turn from solid linear BLADEâ„¢ pattern to solid tight pattern
- Hard-coat anodized aluminum construction
- Full-time swivel
- NFPA 1960/1964 compliant
- 5-Year Warranty
Specifications
| Target flow | 45 gpm |
|---|---|
| Target pressure | 100 psi |
| BLADE™ pattern angle | 22° |
| Weight | 1 lb |
| Length | 5.5 in. |
| Width | 2.5 in. |
Flow at nozzle pressure
| Pressure | 50 psi | 75 psi | 100 psi | 125 psi | 150 psi |
|---|---|---|---|---|---|
| Flow | 32 gpm | 39 gpm | 45 gpm | 51 gpm | 56 gpm |
Sizes & matching equipment
| Inlet | HEN SKU | Best shutoff | Also works with | Hose |
|---|---|---|---|---|
| 1" NPSH | 045T10-00 | Hydro 100 Shutoff (100H11-00) | — | 1" Hose (also 1" Booster Reel) |
| 1" NH | 045T20-00 | Hydro 100 Shutoff (100H22-00) | — | 1" Hose (also 1" Booster Reel) |
| 1.5" NH | 045T30-00 | Hydro 100 Shutoff (100H33-00) | — | 1.5" Hose |
| 1.5" NPSH | 045T50-00 | Hydro 100 Shutoff (100H55-00) | — | 1.5" Hose |
Data sheet
Download HEN Blade 45-t data sheet (PDF)
Need help matching a nozzle, shutoff and hose for your department? Contact your White Rose Safety rep.
| Attributes | Value |
|---|---|
| Inlet |
1"NPSH, 1"NH, 1.5"NH, 1.5"NPSH |
