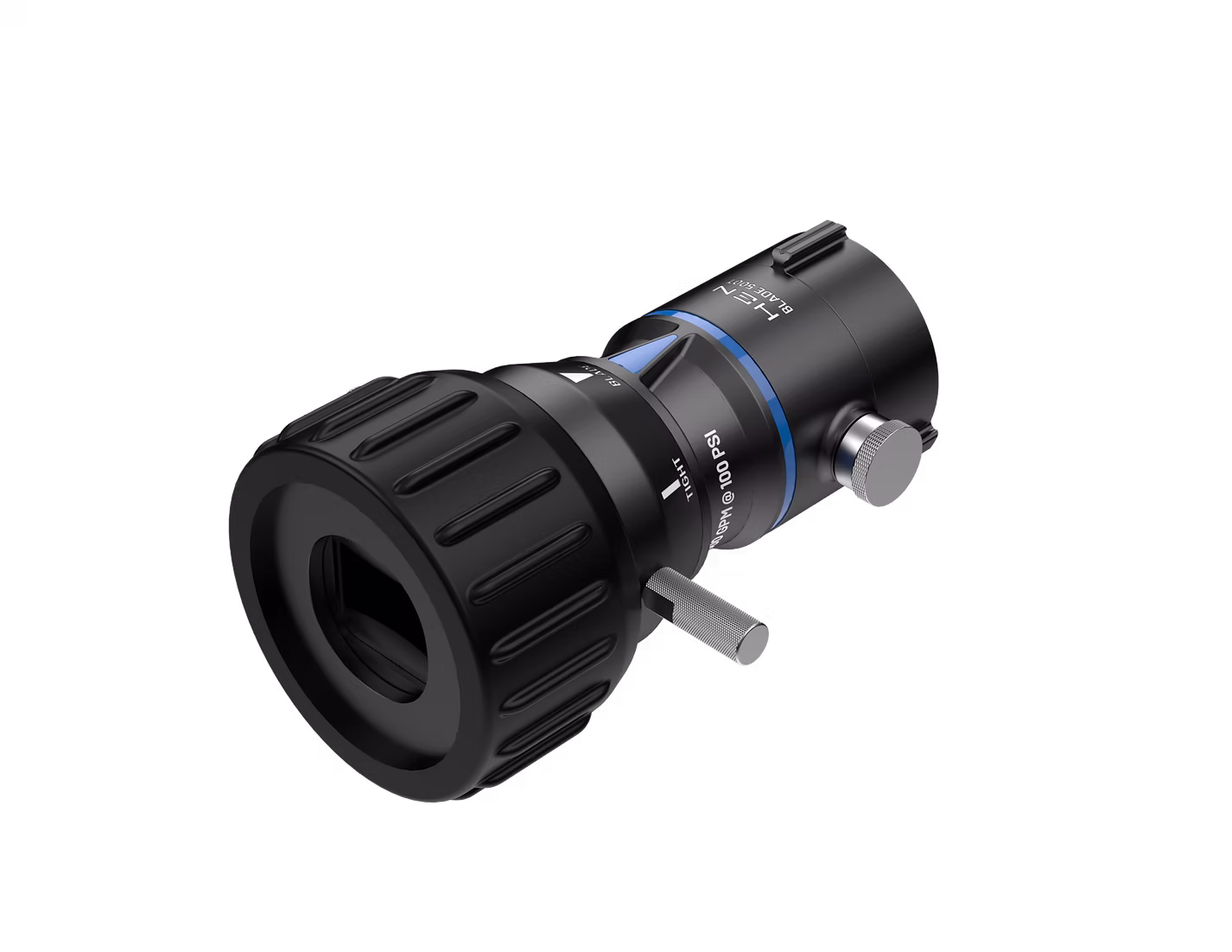

The HEN Blade 750 is a blade nozzle rated at 750 GPM, built for master stream / deck gun operations.
The BLADEâ„¢ 750 delivers unmatched versatility and control, combining large droplet formation with variable velocity for superior stream stability, reach, and penetration.
Features
- Solid tight pattern with large water droplets
- Solid linear BLADEâ„¢ for maximum coverage
- Hard-coat anodized aluminum construction
- Adjustable BLADEâ„¢ stream width and vertical-to-horizontal positioning
- NFPA 1960/1964 compliant
- 5-Year Warranty
Specifications
| Target flow | 750 gpm |
|---|---|
| Target pressure | 100 psi |
| Weight | 7 lbs |
| Length | 9.5 in. |
| Width | 8 in. |
| Height | 3.7 in. |
Flow at nozzle pressure
| Pressure | 50 psi | 75 psi | 100 psi | 125 psi | 150 psi |
|---|---|---|---|---|---|
| Flow | 530 gpm | 650 gpm | 750 gpm | 839 gpm | 919 gpm |
Sizes
| Inlet | HEN SKU |
|---|---|
| 2.5" NH | 750T40-00 |
| 2.5" NPSH | 750T60-00 |
Data sheet
Download HEN Blade 750 data sheet (PDF)
Need help matching a nozzle, shutoff and hose for your department? Contact your White Rose Safety rep.
| Attributes | Value |
|---|---|
| Inlet |
2.5"NH, 2.5"NPSH |
