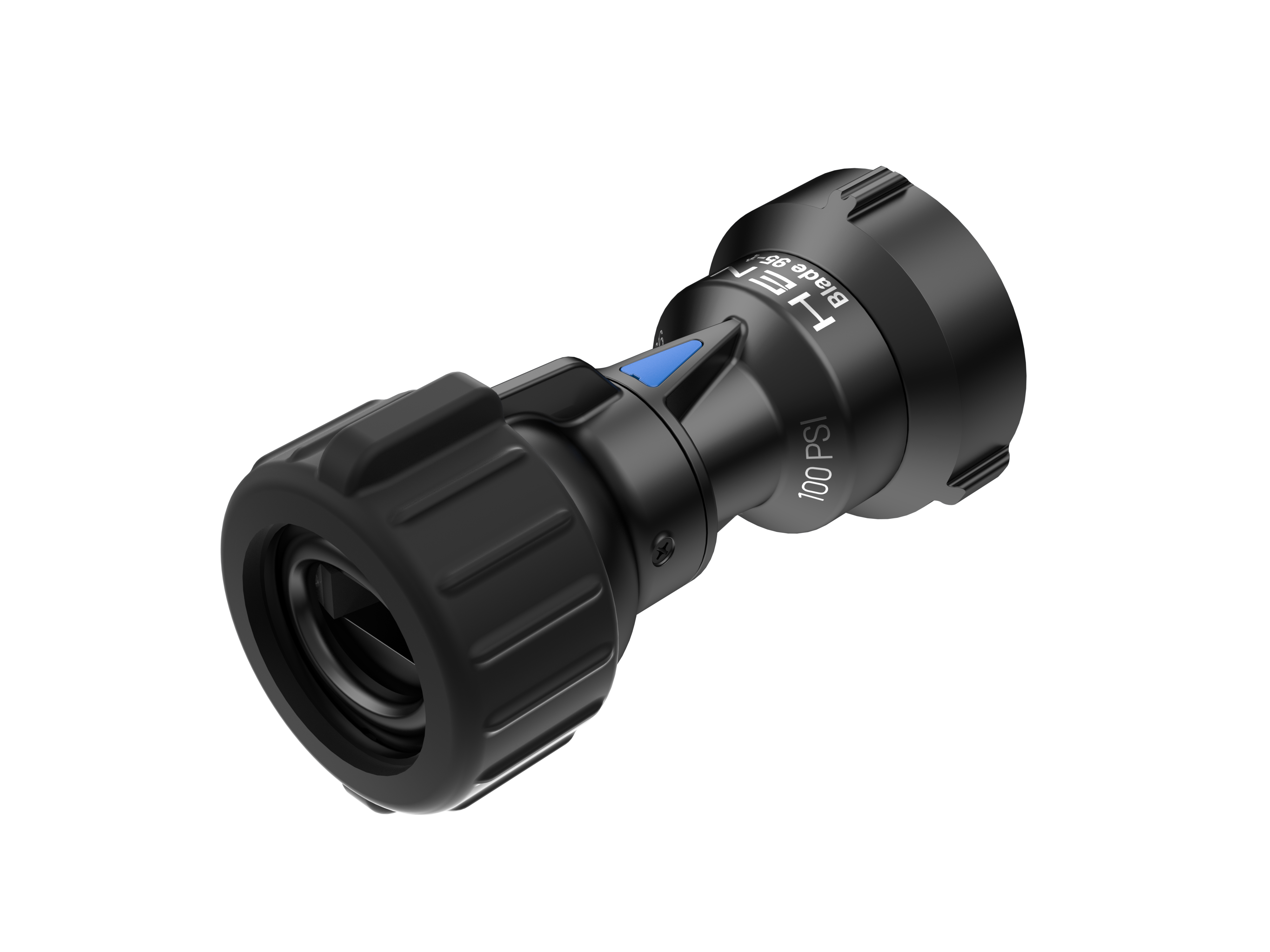

The HEN Blade 95-t Nozzle is a blade nozzle rated at 95 GPM, built for wildland and bumper lines.
The HEN® BLADE™ combination smoothbore nozzle redefines fire attack by combining the reach and penetration of a traditional smoothbore with the versatility of an in-line BLADE™ pattern.
Features
- Quarter-turn from solid linear BLADEâ„¢ pattern to solid tight pattern
- Hard-coat anodized aluminum construction
- Full-time swivel
- NFPA 1960/1964 compliant
- 5-Year Warranty
Specifications
| Target flow | 95 gpm |
|---|---|
| Target pressure | 100 psi |
| BLADE™ pattern angle | 22° |
| Weight | 1.2 lb |
| Length | 5.7 in. |
| Width | 2.7 in. |
Flow at nozzle pressure
| Pressure | 50 psi | 75 psi | 100 psi | 125 psi | 150 psi |
|---|---|---|---|---|---|
| Flow | 67 gpm | 82 gpm | 95 gpm | 106 gpm | 116 gpm |
Sizes & matching equipment
| Inlet | HEN SKU | Best shutoff | Also works with | Hose |
|---|---|---|---|---|
| 1" NPSH | 095T10-00 | Hydro 100 Shutoff (100H11-00) | — | 1" Hose (also 3/4" Booster Reel) |
| 1" NH | 095T20-00 | Hydro 100 Shutoff (100H22-00) | — | 1" Hose (also 3/4" Booster Reel) |
| 1.5" NH | 095T30-00 | Hydro 100 Shutoff (100H33-00) | Hydro 138 Shutoff (138H33-00) | 1.5" Hose (also 1.75" Hose) |
| 1.5" NPSH | 095T50-00 | Hydro 100 Shutoff (100H55-00) | Hydro 138 Shutoff (138H55-00) | 1.5" Hose (also 1.75" Hose) |
Data sheet
Download HEN Blade 95-t data sheet (PDF)
Need help matching a nozzle, shutoff and hose for your department? Contact your White Rose Safety rep.
| Attributes | Value |
|---|---|
| Inlet |
1"NPSH, 1"NH, 1.5"NH, 1.5"NPSH |
