  • HEN Titan Prime deck gun
HEN Titan Prime deck gun

HEN Titan Prime (Deck Gun) Package

$16,150.00

Complete HEN electronic deck gun package: 1,250 GPM monitor, wireless control pendant and 500 GPM electronic blade.

The HEN Titan Prime is a complete electronic deck gun package for apparatus.

TITAN PRIME is a precision master stream designed for modern fireground operations, delivering controlled, high-volume water with accuracy and efficiency.

Features

  • Four-axis control for precise stream placement and pattern orientation
  • Wide BLADE coverage that maximizes surface contact and cooling
  • Automatic adjustment—no need to shut down to change tips
  • Large-droplet streams designed to overcome heat and wind
  • Real-time visibility of GPM, PSI, and total water flowed
  • Panel mount controls or detachable controller operation
  • Built to NFPA standards with waterproof protection and 5-year warranty

Specifications

Max flow 1250 GPM
Max pressure 200 PSI
Travel range -45° to +90° vertical, 350° horizontal
BLADE orientation 90° horizontal to vertical
Inlet 3 in flange, 4 in flange, 2.5 in NPT
Outlet 2.5 in Male NH
Material Aluminum w/ Teflon-impregnated hard anodize
Weight 25 lbs
Height (without nozzle) 20 in
Width 15 in
Voltage 12 or 24 VDC
Control CANbus J1939

Package includes

  • HEN Monitor – 1,250 GPM (1250M-X4-00)
  • HEN Wireless Mounted Control Pendant (W-00-00)
  • HEN Electronic Blade – 500 GPM (500E-40-00)

Each component is also sold separately.

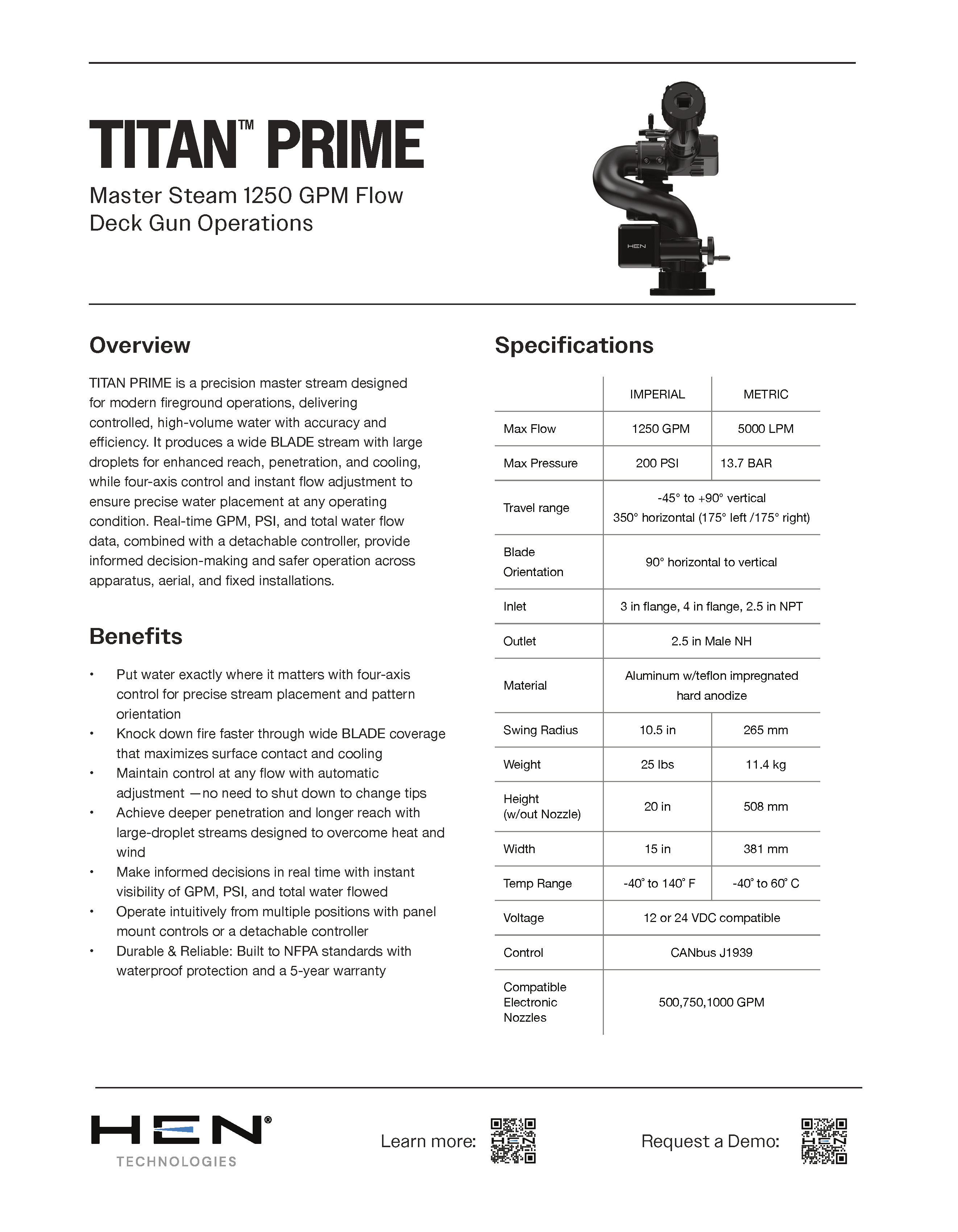

Data sheet

Download HEN Titan Prime data sheet (PDF)

Need help matching a nozzle, shutoff and hose for your department? Contact your White Rose Safety rep.
